Unlocking Realistic Motion Retargeting: A Deep Dive into Wan2.1-Fun-Control

CN
ComfyUI.org
2025-05-27 08:24:56

1. Workflow Overview

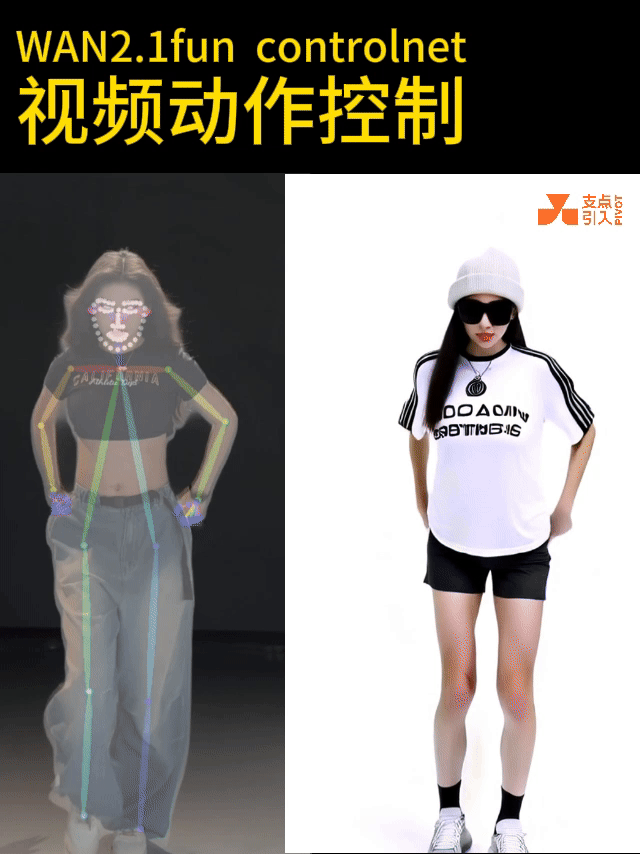

mb6936nu7c93vqthc3f6430de0a614c38116f6670b009691e68872ae6d92090b8f0912255d9a514764b.gif

  • Purpose: Motion retargeting from a source video to a target character using Wan2.1-Fun-Control model.

  • Key Tech:

    • Pose Extraction: DWPreprocessor detects keypoints from input video.

    • Multimodal Control: CLIP vision + T5 text + depth maps (DepthAnythingPreprocessor).

    • Temporal Coherence: WanFunControlToVideo generates frame-consistent videos.

2. Core Models

Model Name

Function

Wan2.1-Fun-Control-14B

Base motion control model (14B params, FP8 optimized).

umt5-xxl_fp8_e4m3fn_scaled

Text encoder for prompts (e.g., negative prompts to filter bad frames).

depth_anything_vitl14

Depth preprocessor for spatial consistency.

3. Key Nodes

3.1 Input Processing

  • VHS_LoadVideo:

    • Loads input video (e.g., 5月12日 0.8.mp4), extracts frames (25FPS default).

  • LoadImage:

    • Loads target character image (e.g., 00088-3677135724.png).

3.2 Motion Analysis

  • DWPreprocessor:

    • Extracts pose keypoints (using yolox_l.onnx and dw-ll_ucoco_384).

  • DepthAnythingPreprocessor:

    • Generates depth maps for background alignment.

3.3 Video Generation

  • WanFunControlToVideo:

    • Key params: 832x480 output, 81 frames (~3.24s), CFG=1.0.

    • Inputs: Pose keypoints + CLIP features + text conditioning.

  • KSampler:

    • Settings: 20 steps, Euler sampler, fixed seed (198).

3.4 Post-Processing

  • SkipLayerGuidanceWanVideo:

    • Skips UNet layers (9,10) at 0.2 strength for detail/fluency balance.

  • WanVideoEnhanceAVideoKJ:

    • Reduces flickering (strength=0.2).

4. Workflow Structure

Stage

Key Nodes

Function

Input Prep

VHS_LoadVideo + LoadImage

Loads video and target image.

Motion Extract

DWPreprocessor → DepthAnything

Extracts poses and depth maps.

Conditioning

CLIPTextEncode + CLIPVisionEncode

Encodes text/visual conditions.

Video Gen

WanFunControlToVideo → KSampler

Renders motion-retargeted frames.

Output Export

VHS_VideoCombine

Final video (H.264, CRF=15).

5. Inputs & Outputs

  • Inputs:

    • Source video (MP4, 25FPS recommended).

    • Target character image (PNG/JPG, transparent background preferred).

    • Optional text prompts (style control).

  • Output:

    • Motion-retargeted video (default 832x480, 25FPS).

6. Notes

  1. Hardware:

    • 16GB+ VRAM (RTX 4080+ recommended for 14B model).

    • Enable FP8 optimization (fp8_e4m3fn) for lower VRAM usage.

  2. Dependencies:

    • Download Wan2.1-Fun-Control-14B and depth_anything_vitl14.pth manually.

  3. Troubleshooting:

    • Reduce flickering: Increase KSampler steps (20→30) or lower SkipLayerGuidance strength (0.2→0.1).

    • Resolution errors: Match video/image aspect ratios (e.g., 512x512).
